7W CREE COB LED Ceiling DownLights For Exhibition Room / Hotels / Shopping Malls

Shenzhen ATA Technology Co., Ltd

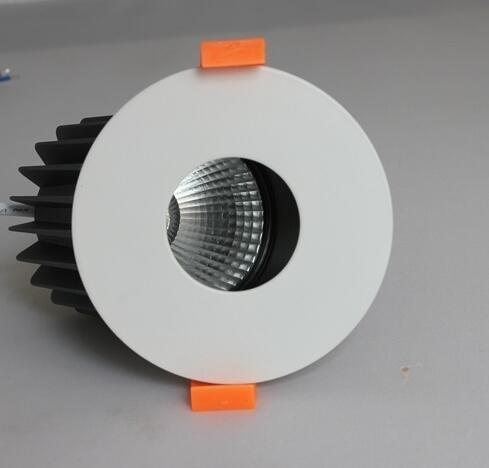

7W CREE COB LED Ceiling DownLights For Exhibition Room / Hotels / Shopping Malls

  • 1
  • 2

Brand Name : ATA

Model Number : ATA-DL8W

Certification : CE, RoHS, SAA, C-Tick, RCM, CB, FCC, PSE, CCC, ETL, TUV-GS, TUV-mark, VDE, ERP, UL, cUL, DLC

Place of Origin : Shenzhen, China

MOQ : 1 Piece

Price : US $8.9-9.2/ Piece

Payment Terms : T/T, Western Union, Paypal, Cash

Supply Ability : 300, 000/Pieces/Month

Delivery Time : Samples 3-5 working days, normal orders 7-10 working days

Packaging Details : White Box and K=K Carton

Power : 6W/8W/10W/12W/15W/20W/25W/30W

Voltage : AC100-240V AC100-277V 50/60Hz

Size : 3.5′′/4′′/5′′/6′′/8′′inches

Hole Cut-out Diameter : 90mm/120mm/150mm/170mm/200mm

Light Source : SMD COB High Power LED

Light Efficiency : 120lm/W

CCT : 3000K-3500K 4000K-4500K 5500K-6500K

CRI : 80

PF : 90

Beaming Angle : 24/38/60 degree

IP Rating : IP44

Housing Material : Aluminum Alloy

Installation : Embedded

Application : Engineering, Home Furnishing, Office Lighting

Life-span : 50000H

Warranty : 3 years

Package : White Box and K=K Carton

HS Code : 9405409000

Contact Now

7W CREE COB LED Ceiling DownLights for Hotels

Applications:

Shopping Malls, Stores, Building, supermarkets, hotels, exhibition rooms, museums, display windows, restaurants, art halls, offices, reading rooms etc.

Product Features
1, Compact design with Antiglare ring

2, LM80 approved LED light source and CRI 83Ra

3, TUV, SAA, UL approved power supply

4, CE, RoHS approved

5, 3 years' warranty


Technical Specifications

Part No. Power Dimension(mm) Input Voltage CCT Luminous flux Hole Cut-out Diameter
3.5'' inches
3.5'' inches 6W φ125*H60 AC100-240V 50/60Hz 3000k-3500k 600LM±100lm φ90mm
4000k-4500k
5500k-6500k
4'' inches
4'' inches 10W φ140*H80 AC100-240V 50/60Hz 3000k-3500k 1000LM ± 10% φ120mm
4000k-4500k
5500k-6500k
12W φ140*H80 AC100-240V 50/60Hz 3000k-3500k 1200LM ± 10% φ120mm
4000k-4500k
5500k-6500k
5''inches
5''inches 15W φ180*H80 AC100-240V 50/60Hz 3000k-3500k 1500LM ± 10% φ150mm
4000k-4500k
5500k-6500k
6''inches
6''inches 20W φ190*H80 AC100-240V 50/60Hz 3000k-3500k 2000LM ± 10% φ170mm
4000k-4500k
5500k-6500k
8''inches
8''inches 25W φ230*H88 AC100-240V 50/60Hz 3000k-3500k 2500LM ± 10% φ200mm
4000k-4500k
5500k-6500k
30W φ230*H88 AC100-240V 50/61Hz 3000k-3501k 3000LM ± 10% φ200mm
4000k-4501k
5500k-6501k


Project Case:
7W CREE COB LED Ceiling DownLights For Exhibition Room / Hotels / Shopping Malls


User Manual:
Switch off power of the mains supply or respectively of the connection lead before doing any works.
Assembly must not damage or destroy conducting paths.
Make sure that the product is mounted on a stable, even and tilt-fixed background.
The complete installation must be done by an electrical expert who is familiar with the valid directives.

Quaity Control:
Stability TEST: make sure 100% of the lamps be aging test at least 48hours
Lighting TEST: make sure 100% of the lamps be lighted before packing
Drop TEST: make sure every single light have been well protected by box

Contact:
Peony Jin
Mobile: 0086-180 0253 2737
Please feel free to send us your inquiry, We are at your service any time!
