4 Inch 5 Inch 9w 15w Round Ceiling LED Panel Light / Dimmable Led Ceiling Panels

Shenzhen ATA Technology Co., Ltd

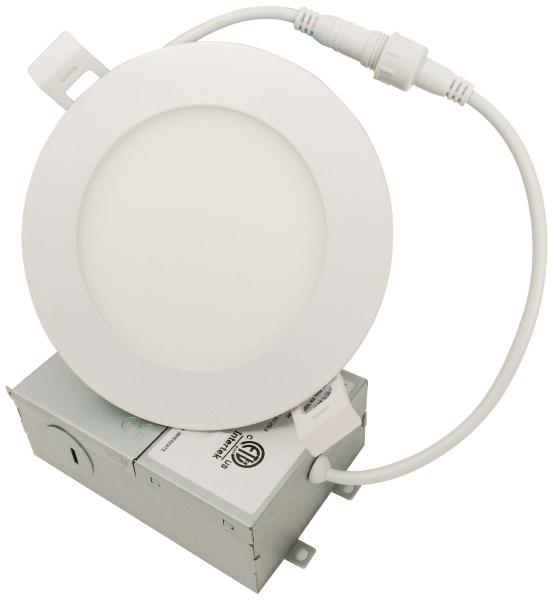

4 Inch 5 Inch 9w 15w Round Ceiling LED Panel Light / Dimmable Led Ceiling Panels

Brand Name : ATA

Model Number : ATA-PL09W

Certification : CE, RoHS, SAA, C-Tick, RCM, CB, FCC, PSE, CCC, ETL, TUV-GS, TUV-mark, VDE, ERP, UL, cUL, DLC

Place of Origin : Shenzhen, China

MOQ : 1

Price : US $3.3-14.7/ Piece

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal, Cash

Supply Ability : 500, 000/Pieces/Month

Delivery Time : Samples 3-5 working days, normal orders 7-10 working days

Packaging Details : Package Pearl Foam Inner Box and K=K Carton

Power : 6W/9W/12W/15W/18W/20W/22W/24W

Voltage : 100-277V

Product name : round led panel light

Luminous Efficiency : 100lm/W

Colour(CCT) : 3000K, 4000K, 5000K, 6000K

LED Type : SMD2835 with Lm80 Repor

CRI : Ra>83

Power Efficiency : >93%

Power Factor : >0.95

Hole-cut size : Φ86/Φ120/Φ146/Φ170/Φ225/Φ297

Beam Angle : 120°

Junction Temperature : <75℃(Ta=30℃)

Storage Temperature : -40~+70℃

Working Temperature(℃) : -30~+50℃

Operating Humidity : 15-90%RH

Body Colour : white

IP Grade : IP44

Material : Die-cast Aluminum, PC

Application : slim kitchen led panel

HS Code : 9405409000

Contact Now

4 Inch 5 Inch 9w 15w Round Ceiling LED Panel Light / Dimmable Led Ceiling Panels

Product Features


1, Compact design with Antiglare ring

2, LM80 approved LED light source and CRI 83Ra

3, TUV, SAA, UL approved power supply

4, CE, RoHS approved

5, 3 years' warranty

Technical Specifications

Item No. Luminous Efficiency LED Type Colour ( CCT) Input Wattage CRI SizeΦmm Dimmable LED Chip
Voltage Brand
4''inches 80-100lm/W SMD2835 3000K 4000K 5000K 6000k 6500k AC 120V 100-240V 9W ≥80 Φ120 Yes

Epistar

SANAN

SANSUNG

5''inches 80-100lm/W SMD2835 15W ≥80 Φ146 Yes
6''inches 80-100lm/W SMD2835 12W ≥80 Φ170 Yes
8''inches 80-100lm/W SMD2835 18W ≥80 Φ225 Yes
10''inches 80-100lm/W SMD2835 24W ≥80 Φ297 Yes

Project Case:


4 Inch 5 Inch 9w 15w Round Ceiling LED Panel Light / Dimmable Led Ceiling Panels
User Manual:
Switch off power of the mains supply or respectively of the connection lead before doing any works.
Assembly must not damage or destroy conducting paths.
Make sure that the product is mounted on a stable, even and tilt-fixed background.
The complete installation must be done by an electrical expert who is familiar with the valid directives.

Quaity Control:
Stability TEST: make sure 100% of the lamps be aging test at least 48hours
Lighting TEST: make sure 100% of the lamps be lighted before packing
Drop TEST: make sure every single light have been well protected by box

Contact:
Peony Jin
Mobile: 0086-180 0253 2737
Please feel free to send us your inquiry, We are at your service any time!
