Addrssable LED Flexible Strip Lights HD107s Pixel 5050 LED Chip 50000H Lifespan

Shenzhen ATA Technology Co., Ltd

Addrssable LED Flexible Strip Lights HD107s Pixel 5050 LED Chip 50000H Lifespan

  • 1
  • 2
  • 3

Brand Name : ATA

Model Number : ATA-hD107s

Certification : UL, TUV, GS, CB, SAA, LVD, EMC, FCC, CE, RoHS

Place of Origin : Shenzhen, China

MOQ : 1 Roll

Price : US $3.55-5.85/ Roll

Payment Terms : T/T, Western Union, Paypal, Cash

Supply Ability : 500, 000/Meters/Month

Delivery Time : Samples 3-5 working days, normal orders 7-10 working days

Packaging Details : Antistatic Bag and K=K Carton

LED Type : 5050

Lumen : 22-25lm/LED

CRI : Ra80

Viewing Angle : 120 Degree

Power : 9W/18W/21.6W/43.2W

Voltage : 5V

LED Quantity Per Meter : 30LED, 60LED, 72LED, 144LEDs

Color : RED/GREEN/BLUE/YELLOW/WHITE/WARM WHITE/NATURAL WHITE/RGBW

PCB Width : 10mm

IP Grade : IP20,IP65, IP67

Meter Per Reel : 5meters

Package : Antistatic Bag and K=K Carton

Life-span : 50000H

Warranty : 3 years

HS Code : 9405409000

Material : silicon, PVC

Contact Now

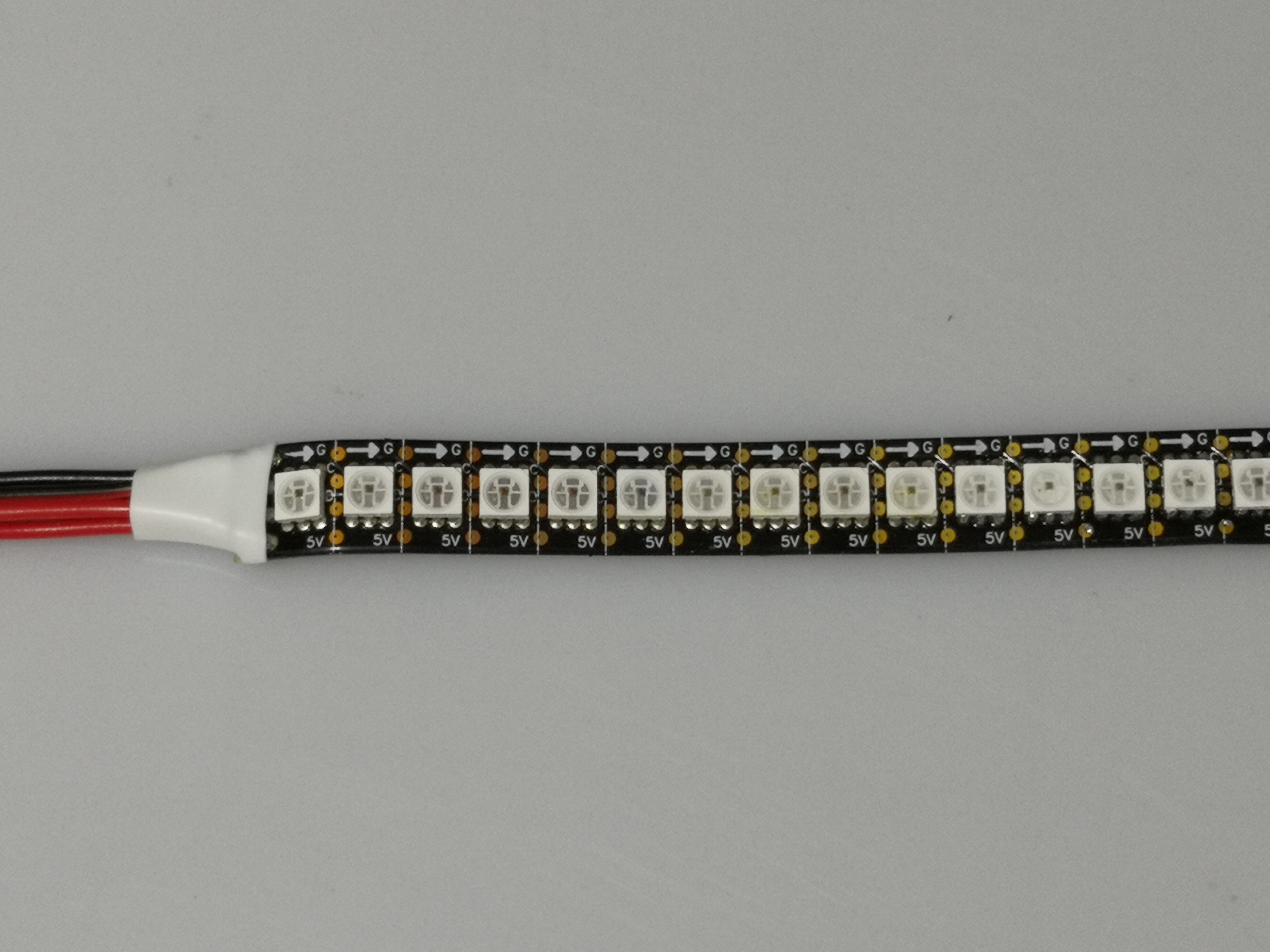

HD107S RGB Pixel Digital LED Strip Lights
Technical Parameters
LED Light Source: 5050 SMD LED,
Viewing angle: 120 degrees
Working voltage: DC5V
Color: White, Warm white, Natural white, Red, Green, Blue, Yellow, RGB
PCB Width: 12mm
PCB color: White/Black
LED Quantity per meter:144led
Waterproof rate: IP20, IP65, IP67
Waterproof method: Surface Epoxy Plated, Silicone Pipe, Full Silicone Gel
Working temperature: -20~+60 celsius degree
Packing: 5m/roll, 1roll/bag

HD107S will be upgraded again, the PWM can be 26-28kHz, faster and cheaper than APA102.
HD107S is a type ic for the three-color RGB Diming control strip and string ,This ic using the CMOS process to provide three-color RGB LED output driver to adjust the output with 256 gray scale and 32 brightness adjustment, APA107 with 2 signal output way, one is clock ,another is data, the clock and data is synchronizated,so that the crystal cascade piece of output movement is sychronizated.

Features:
1, Control IC included,supporting numerous color-change effects.
2, Absolutely addressable,each IC built inside RGB LED.
3, Each IC control one leds.
4, h107s have 4 Wire input and output : Data ,Clock ,GND ,Anode, build in ic, double signal .
5, Grey scale 256, 256(Red)*256(Green)*256(Blue) colors that APA107 LED can change to. Keep LED show smooth color effect when changing color.

OPTICAL PARAMETERBASIC PARAMETER
LED Q’ty: 30LEDs/m, Pixels: 30/m , Gray Scale:256
Power/m: 9W, Input voltage: DC5V, Max current/LED: 60Ma, Warranty: 3years,
Illumination Angle: 120° , Working temperature: -20℃~+45℃, Working hour: 30000h
Energy grade: A, SMD LED spacing: 33.08mm, CRI(Ra): >80Ra
Minim cuttable length: every LED is cuttable, PCB Width: 10mm

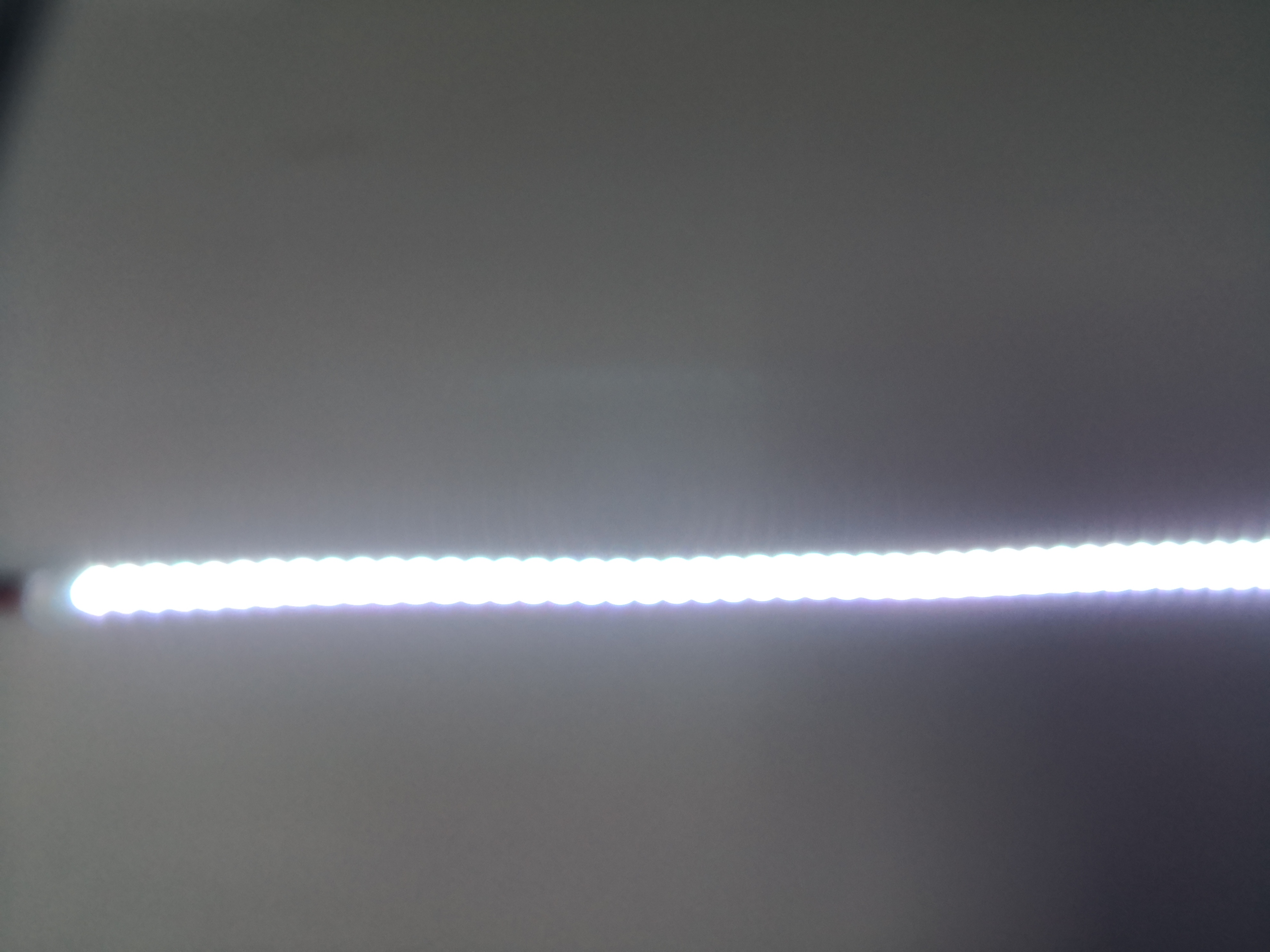

The upgraded type of HD107S Pixel Digital LED Strip Lights.
APA107 LED Strip Connections:
Applications

Indoor and outdoor decoration lightings.
Idea for in advertisement and cabaret, large scale backlight, cabinet, furniture, landscape outlines
Edge-lighting of transparent or diffused materials, to couple light into transparent or diffused glass
Bridge edge lighting
Window display lighting
Car and motorcycle decorative lighting
Path & Building contour decorative lighting
Emergency hallway lighting / rescue signs / advertising signs / light boxes
Architectural decorative lighting, villa, restaurant, hotel, meeting room, show room, shop, counter, etc
Festival lighting, General lighting, Task lighting, Household appliances, Architectural lighting, Decorative / pathway lighting, Street lighting


User Manual:
Switch off power of the mains supply or respectively of the connection lead before doing any works.
The complete installation must be done by an electrical expert who is familiar with the valid directives.
Quaity Control:
Stability TEST: make sure 100% of the lamps be aging test at least 48hours
Lighting TEST: make sure 100% of the lamps be lighted before packing
Drop TEST: make sure every single light have been well protected by box
